Eberspächer Hydroplate HS3

On this page:

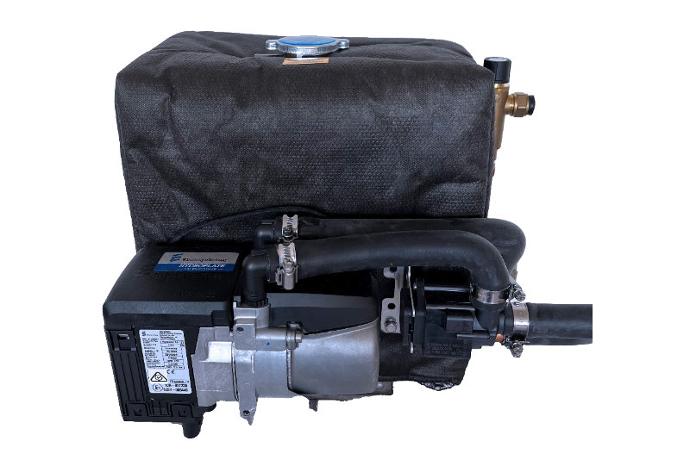

HYDRONIC HS3 D5E HYDROPLATE




Hydronic HS3 D5E Product Information


This Eberspächer Hydroplate system is a continuous flow hot water service suitable for various applications and uses for installation into Motorhomes, Caravans, Campers just to mention a few.
It utilizes either the existing Vehicle Diesel tank or fuel can be supplied by a designated tank. 12v low amp draw manages the unit's operation.

After approximately 10-15 minutes hot water will be available for washing and showering. The continuity of hot water will be dependent on the flow rate of the domestic water pump (6-11 l/m) as an average. Its optimum use is in short bursts of up to 3 minutes at a time, however depending on required temperature, flow could be longer

In addition, the Hydroplate has an optional air heating matrix that can be fitted to supply air heating to the desired temperature, thereby providing a complete off grid Hot water and air heating solution.


Download product Data Sheet

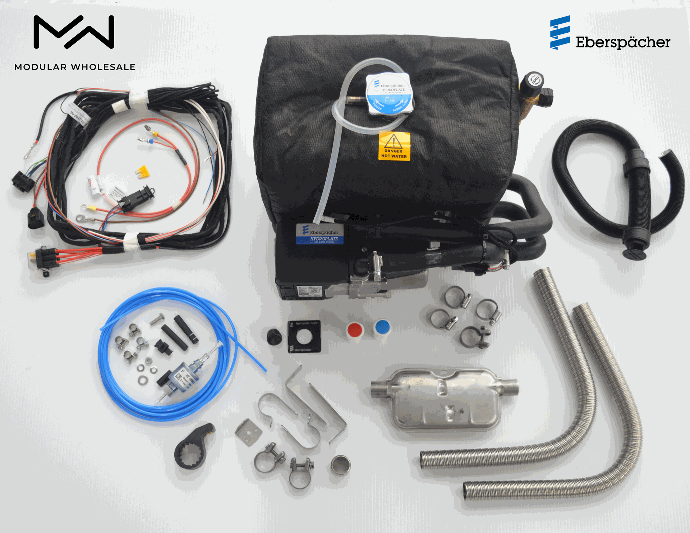

          Eberspächer HS3 D5E Hydroplate Basic Kit

          292135300019  (29.2135.30.0019 )
          D2L AS3 12v 1 OUTLET E/S PRO KIT


          Kit inclusion:

          • 1 x HYDROPLATE HS3 AND TANK ASSEMBLY

          • 1 x COMPLETE WIRING HARNESS (with provision for basic On/Off Switch - included in the Kit)

          • 1 x FUEL METERING PUMP INC PUMP HOLDER

          • 1 x 6mtr FUEL LINE

          • 1 x 2m S/STEEL EXHAUST PIPE & SILENCER

          • 1 x 0.5m AIR INTAKE TUBE

          • 1 x MISCELLANY PACK, SCREWS & WASHERS, CLAMPS, P CLIPS, ZIP TIES, FUEL LINE JOINERS, WARRNTY CARD, QR CODE FOR DIGITAL MANUAL


          Download the Hydroplate HS3 Kit PDF

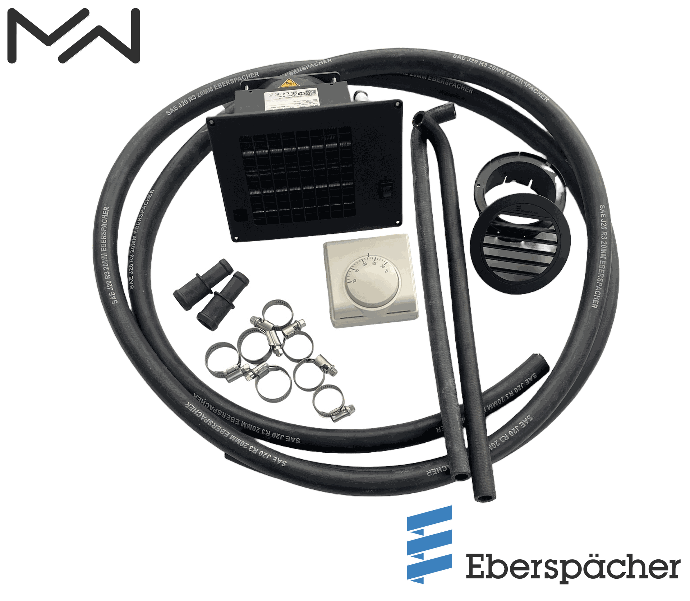

          Eberspächer 2.5 kW add-on kit with Manual Thermostat

          2902800300360 (29.0280.03.00360)

          Kit inclusion:

          • 2.5kW FAN COIL WITH HIGH & LOW SPEED FAN.

          • BLACK FACIA.

          • 4 METERS 16mm WATER HOSE

          • ALL RELATED S/STEEL CLAMPS

          • RELIEF GRILL

          • MANUAL THERMOSTAT

          • THERMOSTAT WIRING DIAGRAM
